If you're running a high-horsepower build and pushing your fuel system to its limits, the stock OEM Fuel Pump Control Module simply isn't up to the task. That's why we developed the SRE Fuel Pump Control Module – a complete plug-and-play replacement engineered for enthusiasts and tuners who demand only the best.

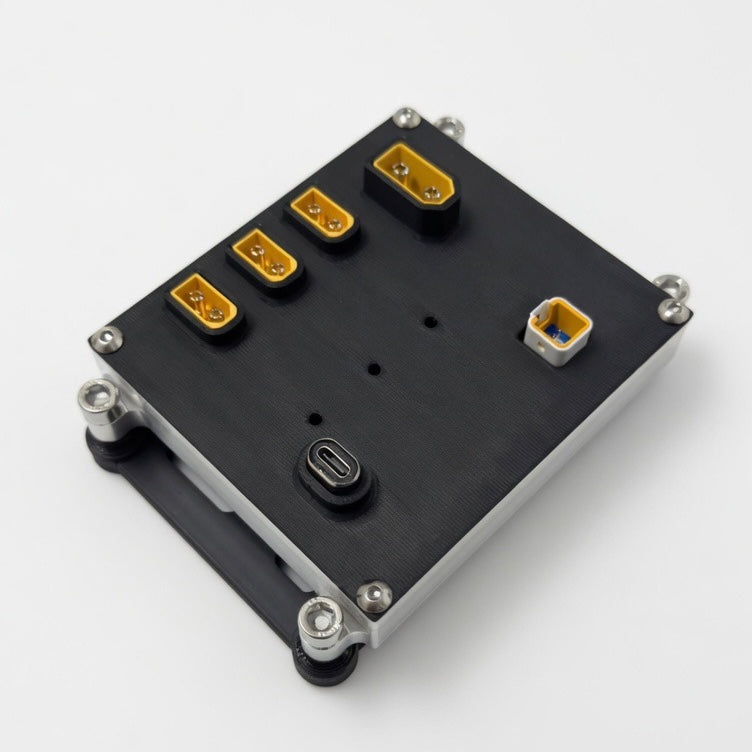

What Is the SRE FPCM?
The SRE FPCM is a direct OEM replacement module that supports up to three high-flow fuel pumps with individual control, delivering consistent fuel pressure from idle all the way to full boost. It installs in the OEM location with a complete plug-and-play adapter and harness – no wiring changes, no relays, no pressure switches.
Key Features
- Complete OEM FPCM replacement – Eliminates factory limitations like current restrictions and overheating.
- True plug-and-play installation – Fits directly in the OEM location with a full PnP harness solution.
- Individual control of 3 fuel pumps – Independent management of each pump with staged operation of the second and third pumps.
- Direct PWM control from stock ECU – Seamlessly integrates with your factory ECU's PWM signals for priming, cranking, and Low/Med/High operation. Full ECU based control of all three pumps is available when the engine is tuned by SRE.
- Manifold pressure based control – Automatically adjusts fuel delivery based on MAP for true 1:1 fuel pressure referencing under boost or vacuum.
- Staged pump control – Intelligently activates pumps in stages as demand increases, optimising efficiency and reducing heat in the fuel tank.
- Up to 25A per pump – Handles the most demanding high-current aftermarket pumps.
- Per-channel current monitoring – Tracks each pump's current draw individually for early fault detection.
- Battery voltage monitoring – Prevents low-voltage issues that could affect pump performance.
- Hardware fault detection – Built-in diagnostics monitor controller, sensor, and pump status for failsafe operation.
- USB interface – For firmware updates and data logging.
Why Upgrade?
Stock OEM modules and wiring frequently limit current and struggle with upgraded pumps. The SRE FPCM eliminates fuel starvation at high load reduces pump heat and noise through efficient PWM control and extends pump life by avoiding constant full-speed operation.
Whether you're building a street car or a full track monster, this module delivers the precision and reliability your build deserves.
Kit Includes
- 1x SRE Fuel Pump Controller
- 1x Mounting Bracket
- 1x 8AWG XT90 Power Cable
- 3x 12AWG XT60 Pump Supply Cables (Radium Hanger)
- 2x 14AWG XT60 Power Cables (Stock Hanger)
- 1x Controller Breakout Harness
- 1x MAP Sensor Splitter
- 1x MAP Signal Cable
- 1x Fuse Holder & 60A Midi Fuse
Ready to take control of your fuel system? Order the SRE FPCM today.
